원래 장소:
광동, 중국
브랜드 이름:
SAIDE
인증:
ce
모델 번호:
2600X
SD1300 SD2600 고정밀 자동 목재 아크릴 PM PS 절단 톱 기계
샘플 무료! 샘플 무료! 샘플 무료!
효율적이고 빠른 처리 능력은 제품 생산율 향상에 전념합니다.
제품 특징:
1. 신뢰할 수 있는 일본 서보 모터 및 제어 장치.
2. 고품질 컨트롤러 PLC.
3. 아크릴 특수 클램프, 소형 재료에 편리함.
4. 독일산 전자 자, 정밀 보상, 해상도 0.01mm.
5. 재료 운반 용이, 볼 베어링 에어 플로팅 테이블, 표면 긁힘 방지.
6. 단순화되고 배우기 쉬운 제어 시스템은 PMMA, MS, PS, PLEXIGLASS, ACRYLIC, PLASTIC 전용입니다.
7. 톱 시트의 가이드 레일은 수입 브랜드를 채택하고, 톱질 직진도는 < 0.06mm, 고정밀 및 중하중, 서보 제어는 PMMA, MS, PS, PLEXIGLASS, ACRYLIC, PLASTIC 전용입니다.
| 제품명 | SD-2600 아크릴 전자 절단 톱 |
| 치수(L*W*H) | 5230mm*5085mm*1660mm |
| 톱질 길이 | 2600mm |
| 톱질 두께 | 70mm |
| 메인 톱날 직경 | φ355mm |
| 메인 톱날 축 직경 | φ30mm |
| 메인 톱날 회전 속도 | 2000-5000rpm(모터 속도 주파수 제어) |
| 톱 캐리지 전진 속도 | 0-60m/min |
| 톱 캐리지 후진 속도 | 0-60m/min |
| 헤드 톱 모터 | 7.5KW |
| 톱 베이스 구동 모터 | 1000W(서보) |
| 자동 공급 모터 | 1000W(서보) |
| 고압 블로워 모터 | 2.2KW |
| 총 전력 | 13KW |
| 자동 공급 속도 | 0-60m/min |

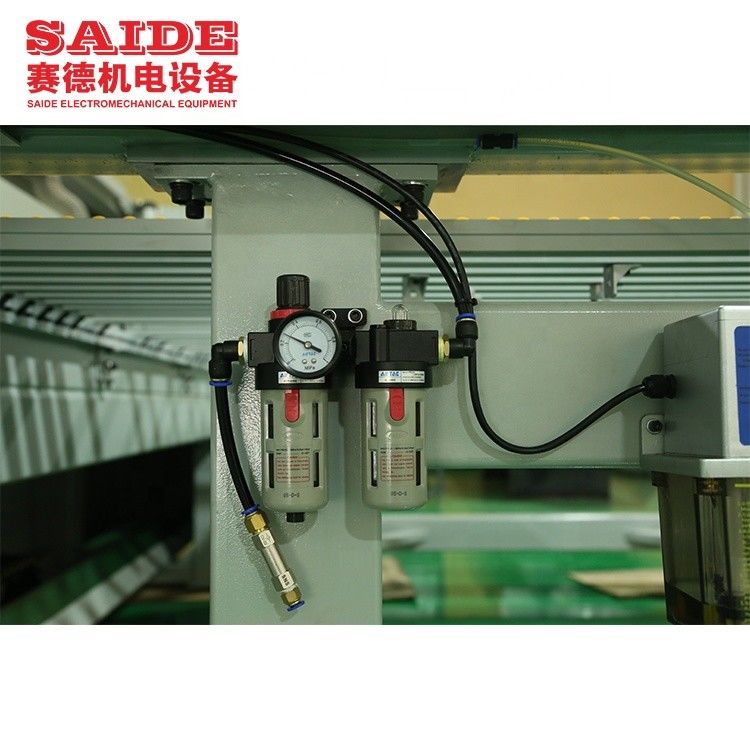

| 작동 압력 | 5-7kg/cm² |
| 작업대 높이 | 950mm |
| 기계 순중량 | 4500KG |

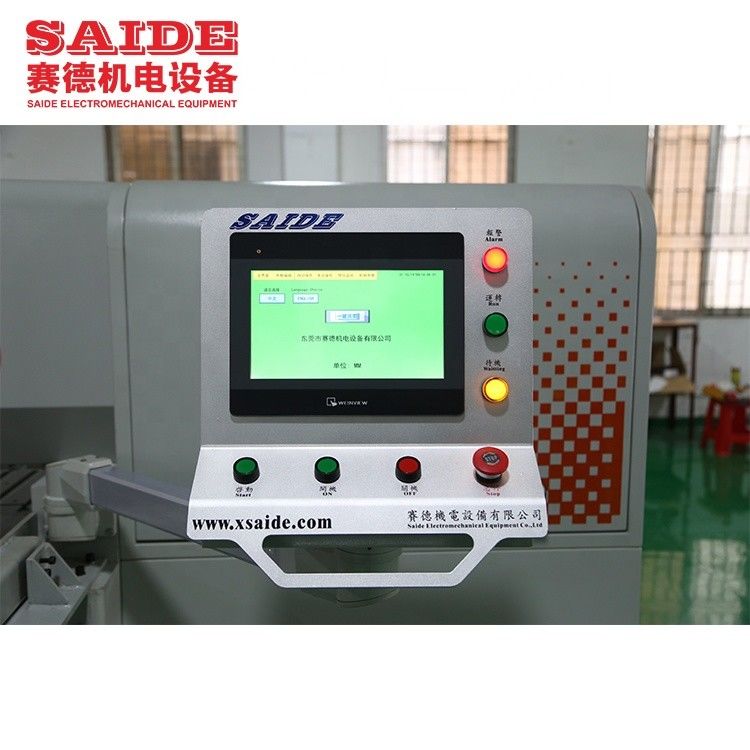

1Saw carrier pull back position automatically controlled base on next cutting length, HD 터치 스크린 제어 시스템:
1) Easy operation, safety & reliable.
2) Which has complete operating hints and troubleshooting guide functions. 3)
It’s cutting plan can edit manually; can simulate or execute cutting plans. 4) C
an compatible with bar code manage software or factory automation software. 5) Machine can receive high precesion about 0.01mm.
2.
Japan PLC control system.3.
Add side aligning system:Fi
x cutting panel width side, control panels won’t move or shake when sawing, ensure sawing
precision.Pressure can be adjusted according to difference thickness, weight and material, ensure the precision of sawing dimension.
4.
Saw carrier 1) D
riven by imported high-precision rack & pinion, stable movement, ensure cutting precision . 2). Saw carrier pull back position automatically controlled base on next cutting length,
Which reduce unused moving time and greatly improve efficiency.3).
Max cutting speed reach to 60m/min.
5. Loading system:
Air floating loading table,avoiding board scratching and assuring smoother board movement, suit for heavy and big type
PMMA, MS, PS, PLEXIGLASS, ACRYLIC, PLASTIC .6. Position system: Imported CNC automatic positioning ruler & slid rail
, e
ffectively avoid the artificial operation error, production efficiency, accuracy. Machine can receive high precesion about 0.01mm. 7.
Automatic feed system 1) Adopt 7
pcspneumatic
holding gripers, can gripe the panel steadily, highly reducelabor intensity, and greatly improve production efficiency, Min holding panel size 45mm.

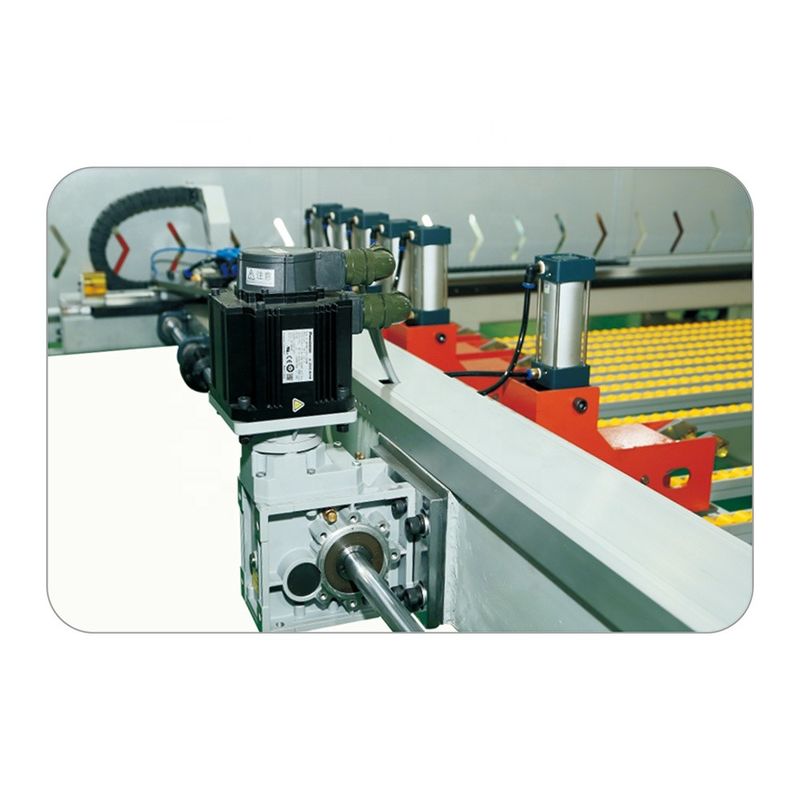

2) Drive by Japan Servomotor & German Electronic ruler
1. After-sell service: Engineers available to service machines in overseas. You can also have training in our factory for free.
24 hours online service every day, free technical support for whole machine life.
2. Technical support:
Machine has been adjusted and all parts will be tested before shipping by our QC staffs.
We will provide the consumable parts whole machine life when you need replacement.
3. Warranty:
Wholmachine with one year guaranty for the machine main parts (excluding the consumables), life time maintenance free of charge.
